Stealth Fine Triamond, PHD II Step Diamond Knife

SKU: 11.317.3016
Legacy SKU#: SSGA FT0312 CG
Tags: Astigmatic Keratotomy, Corneal Grooves, Corneal Relaxing Incisions, Diamond Blade, Diamond Knife, Limbal Relaxing Incisions, LRI Diamond, Paracentesis, Scleral Grooves, Step Diamond Knife, Wound Enlargement
Login or Sign up to view prices.
Login or Sign up to view prices.

FootPlate
Thimble

The Stealth Fine Triamond is designed for refractive and anterior segment surgeries, including astigmatic keratotomy (AK), limbal relaxing incisions (LRI), and corneal relaxing incisions.

Features

  • Ultra-thin blade design (100-120 μm) with "Stealth" self-directing faceting.
  • Adaptable thimble configurations enable precise, depth‑controlled cuts with reduced technique variability.
  • Supports scleral and corneal grooves, paracentesis, and universal wound enlargement during phacoemulsification.
  • Fully rehonable diamond construction ensures lasting cutting performance and long‑term reliability.

Our Commitment to Quality Mastel Surgical maintains strict standards upon width and length, requiring diamond replacement at times to maintain performance standards. Mastel Surgical handles are manufactured from Titanium, delivering a lightweight, highly durable instrument with exceptional precision and control.



Summary Table
FootPlate Glaucoma, Corneal View, Inset Profile (Used w/Guide Ring)
Thimble Cataract/glaucoma; glaucoma; refractive cataract
Blade Width 0.3mm truncation to 1.2mm
Useful Length 3.5 mm (at full extension)
Blade Thickness 100-120 μm (UltraThin)
Blade Rehonability Rehonable
Mounting Straight
Blade Faceting Stealth (self-directing)

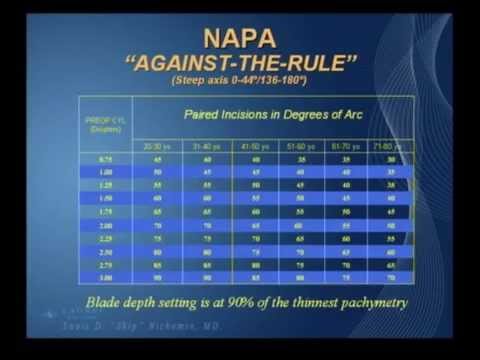

Other Features Agressive Cutting Structure, NAPA Nomogram – Specific diamond, Used with Olson Guide Ring

Extended Description

Testimonials

“The new Inset Profile footplate with 0.3 mm tipped Stealth Triamond is a significant improvement over previous designs for performing LRIs. The closeness of the diamond to the footplate helps to prevent epithelial stripping. The curve of the footplate lines up with the limbus well to facilitate incisions that are parallel to the limbus (which helps give a 1:1 couple ratio of corneal flattening:steepening). The new Inset Profile footplate provides an optimum balance between applanation, visualization, and epithelial protection.” – The late Jack Singer, MD

“The Mastel PhD scalpel has taken the accuracy of my relaxing incisions to a new level. When used with the guide, it makes smooth, precise cuts that have eliminated much of the variability in the technique. It is ideal for both the experienced and beginning surgeon.” – Douglas D. Koch, MD, Houston, TX

“The diamond seats nicely into the cornea and with the guide ring you get perfect arcs every time. Pachymetry adjusted diamond depth gives me consistently good results for what I do. I routinely use it for a diopter or less of pre-existing corneal astigmatism. For greater than one diopter or more I go with the Toric IOL. With the multifocal I get great results. The diamond with the Inset Profile footplate is very kind to the epithelium and the design is superior for visualization.” – Kerry Solomon, MD, Charleston, SC

“Ingenious multi-use titanium handles like the PhD II allow surgeons to use a single, multi-step depth based diamond for LRI’s, AK’s, scleral pockets, and paracentesis. One of my nurses assumed that PhD was the name of the instrument because it was ‘so smart.’ When a Mastel diamond blade is treated well it can provide years of perfect performance through thousands of cases. Incisions on soft eyes, lamellar cuts through perforated eyes and layer by layer dissection of sclera on the way to Schlemm’s Canal are made simple with these “works of art”. Perforations during LRI’s just don’t occur with Mastel products.” – James S. Lewis, MD, Philadelphia, PA

Contributors

Note about Diamond Knives: Mastel maintains strict standards upon width and length, requiring diamond replacement at times to maintain performance standards.

Please contact Mastel in regards to diamond availability and lead times. Call 1-800-657-8057, or email: sales@mastel.com.
